Marine Level Controller
Product Name:
Marine Level ControllerModel No.:
UQK-01-C-Z
Product Abstract:
UQK-01-C-Z is a type of marine float level controller with test device. It is a simply designed model for easy maintenance.- Product Description

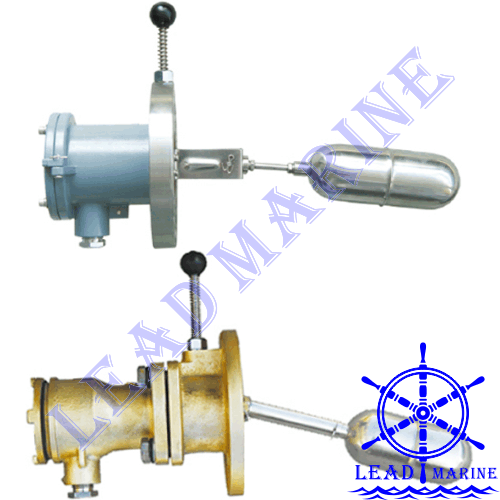

UQK-01-C-Z Marine Float Level Controller
Technical Specification
-
Material:
Aluminium , Stainless Steel , Copper -
Control Range:
10 ~ 30 mm -
Mounting Type:
Horizontal Mounting , Vertical Mounting -
Float Ball:
Φ50 , Φ60 , Φ76 -
Contact Capacity:
250V , 10A -
Protection:
IP66 , IP68 -
Explosion Proof:
Exd IICT6 -
Medium Tem.:
≤ 120℃ -
HS Code:
9026209000 -
Dimension:
355 x 220 x 220 mm -
Weight:
5Kg -
Application:
Oil Tank , Water Tank , etc... -
Lead Time:
Stock Available. -
Certificate:
ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS -
