China Battery Switch
Product Name:
China Battery SwitchModel No.:
marine battery switch
Product Abstract:
China battery switches for marine industry, widely used on ships, yachts and lifeboats, suitable for 6V, 12V, 24V and 32V DC power supply system.- Product Description

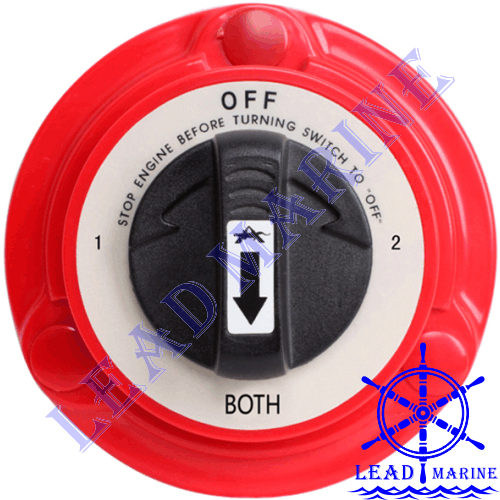

China Battery Selector Switches
Technical Specifications
-
Select OFF:
Complete disconnect of both batteries or banks of batteries. -
Select 1:
Operation of NO.1 battery only. -
Select 2:
Operation of NO.2 battery only. -
Select BOTH:
Operation of both batteries and banks of batteries. -
Rated Voltage:
32V -
Current:
Continuous ：300ADC , Intermittent : 400ADC -
4 Position Selector:
1 - BOTH - 2 - OFF -
HS Code:
84253990 -
Dimension:
48 x 48 x 98 mm -
Weight:
0.5Kg -
Lead Time:
Stock Available. -
Certificate:
ABS , BKI , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS -
For More Information:
Please feel free to contact with Lead Marine.
-
