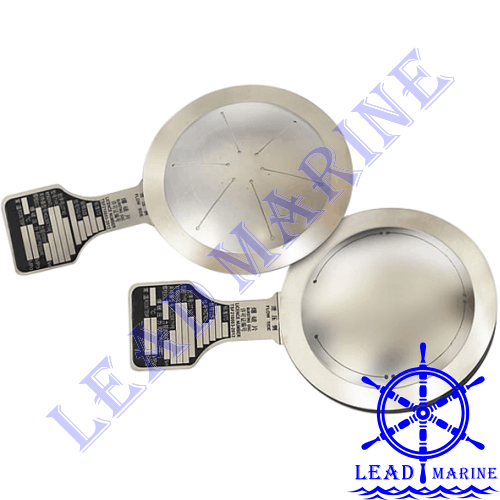

China Burst Disc
Product Name:
China Burst DiscModel No.:
LK
Product Abstract:
Shanghai Huali Safety Devices LK series burst disc shall have one or more layers with slits or slots, it will reduce disk strength and control the bursting pressure.- Product Description
China Burst Discs
Technical Specification
-
Related Model:
LK, LKT -
Structure:
LK Type Domed Slotted Bursting Discs -
Application:
Applied to gas or liquid medium with a low bursting pressure. -
Nominal Diameter:
3mm ~ 600mm -
Bursting Pressure:
0.01Mpa ~ 10Mpa -
Temperature:
Maximum Service Temperature -196℃ ~ 530℃ -
Disc Material:
Aluminium, Cu, Austenitic Stainless Steel, Nickel, Graphite, Tantalum, Titanium -
Sealing Type:
Flat Sealing, Cone Sealing, Flat Sealing With a V Slot -
Holder Type:
LJ, LJB -
HS Code:
8479909090 -
Dimension:
3mm ~ 600mm -
Weight:
0.5Kg -
Lead Time:
Stock Available. -
Certificate:
ABS , BKI, BV , CCS , DNV , GL , LR , KR , NK , RINA , RS , IRS -
For More Information:
Please feel free to contact with Lead Marine.
-
